320-345W poly solar panel

Polycrystalline solar panel 320-345w

Power：

320-345P Tile

Size：

1956x992x40 Millimeter

Weight：

22.1KG Kilogram

Product feature

Product feature

solar panel Model: KSUN72-156M

KEY FEATURES：

Highest  power output：345W ;

Material & workmanship warranty：10 years

Certified by TUV Rheinland：PID Free;

Linear power output warranty：25 years

1 Positive power tolerance: 0-+3%

2 Robust design: Certified to withstand up to 2400 Pa wind load and up to 5400 pa snow load

3 Proved high reliability built on dozens of projects

4 Four busbar cell: Improve the efficiency of modules

PERFORMANCE WARRANTY

Polycrystalline Solar Cell Modules

a:During the first year, KHKSOLAR guarantees the nominal power output of the product will be no less than 97.5% of the labeled power output.

b:From year 2 to year 24, the nominal power decline will be no more than 0.7% in each year; by the end of year 25, the nominal power output will be no less than 80.7% of the labeled power output.

ELECTRICAL  PARAMETERS

Model:KSUN72-156M

Maximum Power Pmax/W:    330   335   340   345

Operating Voltage Vmpp/V:  37.8   38.0   38.2   38.4

Operating Current Impp/A:    8.74   8.82   8.90   8.98

Open-Circuit Voltage Voc/V:  46.9   47.2   47.5   47.8

Short-Circuit Current Isc/A:    9.14   9.18   9.22   9.29

Module Efficiency ηm %:    16.74   17.00   17.25   17.50

Power Tolerance: 0-+3%

Temperature Coefficient:

Pmax:  -0.40%/℃,Voc: -0.31%/℃,Isc: +0.06%/℃

Noct: 45±2℃

* STC: 1000w/㎡,25℃,AM 1.5

OTHER  PARAMETERS:

Cell Type:  Poly Crystalline

Cell Dimensions:   156.75*156.75mm(6inch)

Cell Arrangement:   72(6*12)

Weight:   22.1kg

Module Dimensions:  1956*992*40mm(77.2*39.0*1.6inch)

Cable Length:   900mm(35.4inch)

Cable Cross Section Size:   4mm²(0.006sq.in)

Front Glass:   3.2mm High Transmission, Tempered Glass

No.of  Bypass Diodes:   3/6

Packing Configeration (1):   26pcs/Pallet, 572pcs/40hq

Packing Configeration (2):   26pcs+5pcs/Pallet, 627pcs/40hq

Frame:   Anodized Aluminium Alloy

Junction Box:   IP65/IP67

OPERATING CONDITIONS

Maximum System Voltage: 1000V/DC(IEC)

Operating Temp.:-40℃-+85℃

Maximum Series Fuse:15A

Static Loading:5400Pa

Conductivity at Ground:≤ 0.1Ω

Safety Class:Ⅱ

Resistance:≥100MΩ

Polycrystalline solar panel 320-345w

Power：

320-345P Tile

Size：

1956x992x40 Millimeter

Weight：

22.1KG Kilogram

Product feature

Product feature

solar panel Model: KSUN72-156M

KEY FEATURES：

Highest  power output：345W ;

Material & workmanship warranty：10 years

Certified by TUV Rheinland：PID Free;

Linear power output warranty：25 years

1 Positive power tolerance: 0-+3%

2 Robust design: Certified to withstand up to 2400 Pa wind load and up to 5400 pa snow load

3 Proved high reliability built on dozens of projects

4 Four busbar cell: Improve the efficiency of modules

PERFORMANCE WARRANTY

Polycrystalline Solar Cell Modules

a:During the first year, KHKSOLAR guarantees the nominal power output of the product will be no less than 97.5% of the labeled power output.

b:From year 2 to year 24, the nominal power decline will be no more than 0.7% in each year; by the end of year 25, the nominal power output will be no less than 80.7% of the labeled power output.

ELECTRICAL  PARAMETERS

Model:KSUN72-156M

Maximum Power Pmax/W:    330   335   340   345

Operating Voltage Vmpp/V:  37.8   38.0   38.2   38.4

Operating Current Impp/A:    8.74   8.82   8.90   8.98

Open-Circuit Voltage Voc/V:  46.9   47.2   47.5   47.8

Short-Circuit Current Isc/A:    9.14   9.18   9.22   9.29

Module Efficiency ηm %:    16.74   17.00   17.25   17.50

Power Tolerance: 0-+3%

Temperature Coefficient:

Pmax:  -0.40%/℃,Voc: -0.31%/℃,Isc: +0.06%/℃

Noct: 45±2℃

* STC: 1000w/㎡,25℃,AM 1.5

OTHER  PARAMETERS:

Cell Type:  Poly Crystalline

Cell Dimensions:   156.75*156.75mm(6inch)

Cell Arrangement:   72(6*12)

Weight:   22.1kg

Module Dimensions:  1956*992*40mm(77.2*39.0*1.6inch)

Cable Length:   900mm(35.4inch)

Cable Cross Section Size:   4mm²(0.006sq.in)

Front Glass:   3.2mm High Transmission, Tempered Glass

No.of  Bypass Diodes:   3/6

Packing Configeration (1):   26pcs/Pallet, 572pcs/40hq

Packing Configeration (2):   26pcs+5pcs/Pallet, 627pcs/40hq

Frame:   Anodized Aluminium Alloy

Junction Box:   IP65/IP67

OPERATING CONDITIONS

Maximum System Voltage: 1000V/DC(IEC)

Operating Temp.:-40℃-+85℃

Maximum Series Fuse:15A

Static Loading:5400Pa

Conductivity at Ground:≤ 0.1Ω

Safety Class:Ⅱ

Resistance:≥100MΩ

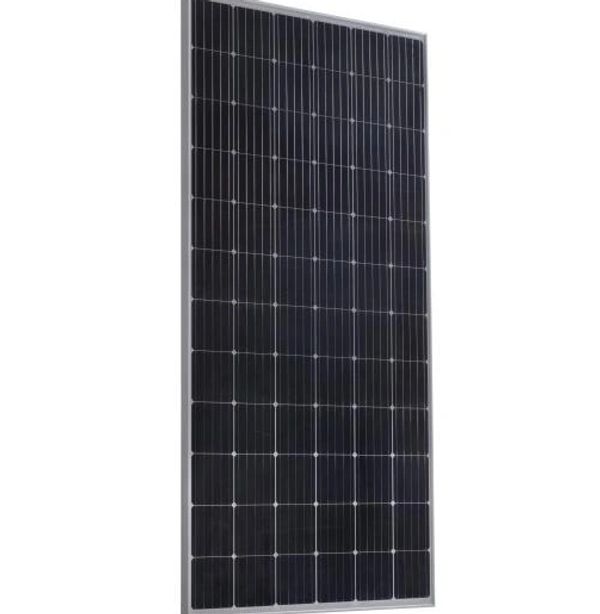

Monocrystalline solar panel 365-380w

Power：

365-380W Tile

Size：

1956*992*40 Millimeter

Weight：

22.1 Kilogram

Product feature

Monocrystalline solar panel 365-380w

solar panel Model: KSUN 72M

KEY FEATURES：

Highest  power output：380W

Material & workmanship warranty：10 years

Certified by TUV Rheinland：PID Free;

Linear power output warranty：25 years

1 Positive power tolerance: 0-+3%

2 Robust design:Certified to withstand up to 2400 Pa wind load and up to 5400  Pa snow load

3 Proved high reliability built on dozens of projects

4 Four busbar cell: Improve the efficiency of modules

PERFORMANCE WARRANTY

a) During the first year, KHKSOLAR guarantees the nominal power output of the product will be no less than 97% of the labeled power output;

b) From year 2 to year 24, the nominal power decline will be no more than 0.7% in each year; by the end of year 25, the nominal power output will be no less than 80% of the labeled power output;

ELECTRICAL  PARAMETERS

Model: KSUN72M

Maximum Power Pmax/W:     365   370   375     380

Operating Voltage Vmpp/V:  39.2   39.4   39.6    39.8

Operating Current Impp/A:    9.32   9.40   9.47    9.56

Open-Circuit Voltage Voc/V:  47.5   47.6   47.7    47.8

Short-Circuit Current Isc/A:    9.89    9.99   10.07  10.13

Module Efficiency ηm %:       18.9    19.1    19.3    19.58

Power Tolerance: 0-+3%

Temperature Coefficient:

Pmax:  -0.39%/℃,Voc: -0.30%/℃,Isc: +0.05%/℃

Noct: 45±2℃

* STC: 1000w/㎡,25℃,AM 1.5

OTHER  PARAMETERS:

Cell Type:  Mono Crystalline

Cell Dimensions:   156.75*156.75mm(6inch)

Cell Arrangement:   72(6*12)

Weight:   22.1kg

Module Dimensions:  1956*992*40mm

Cable Length:   900mm(35.4inch)

Cable Cross Section Size:   4mm²(0.006sq.in)

Front Glass:   3.2mm High Transmission, Tempered Glass

No.of  Bypass Diodes:   3/6

Packing Configeration (1):   27pcs/Pallet, 720pcs/40hq

Frame:   Anodized Aluminium Alloy

Junction Box:   IP65/IP67

OPERATING CONDITIONS

Maximum System Voltage:1000V/DC(IEC)

Operating Temp: -40℃-+85℃

Maximum Series Fuse: 15A

Static Loading: 5400Pa

Conductivity at Ground: ≤ 0.1Ω

Safety Class: Ⅱ

Resistance: ≥100MΩ

Connector:MC4 Compatible

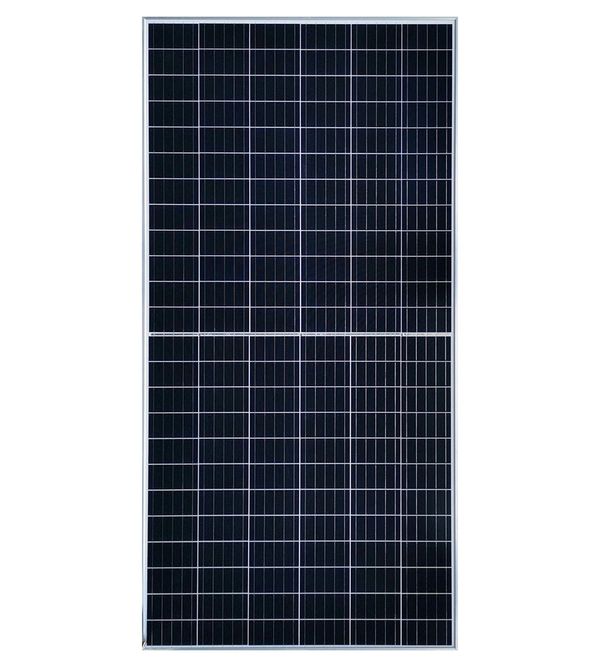

Monocrystalline half cell 390-410w

Power：

390-410 Tile

Size：

2015x1001x40 Millimeter

Weight：

22.7 Kilogram

Product feature

Product feature

Monocrystalline half cell solar panel 390-410watt

solar panel Model: KSUN144M

KEY FEATURES：

Highest  power output：410W

Material & workmanship warranty：10 years

Certified by TUV Rheinland：PID Free;

Linear power output warranty：25 years

1 Positive power tolerance: 0-+3%

2 Robust design:Certified to withstand up to 2400 Pa wind load and up to 5400  Pa snow load

3 Proved high reliability built on dozens of projects

4 Four busbar cell: Improve the efficiency of modules

PERFORMANCE WARRANTY

a) During the first year, KHKSOLAR guarantees the nominal power output of the product will be no less than 97% of the labeled power output;

b) From year 2 to year 24, the nominal power decline will be no more than 0.7% in each year; by the end of year 25, the nominal power output will be no less than 80% of the labeled power output;

ELECTRICAL  PARAMETERS

Model: KSUN 144M

Maximum Power Pmax/W:           390       395       400       405       410

Operating Voltage Vmpp/V:        40.55    40.85    41.17     41.46    41.76

Operating Current Impp/A:          9.62      9.67      9.72       9.77      9.82

Open-Circuit Voltage Voc/V:       48.91    49.21    49.5      49.81    50.12

Short-Circuit Current Isc/A:         10.16    10.21    10.26     10.32    10.37

Module Efficiency ηm %:            19.4       19.7      19.9       20.2      20.4

Power Tolerance: 0-+3%

Temperature Coefficient:

Pmax:  -0.36%/℃,Voc: -0.30%/℃,Isc: +0.066%/℃

Noct: 45±2℃

* STC: 1000w/㎡,25℃,AM 1.5

OTHER  PARAMETERS:

Cell Type:  Mono Crystalline

Cell Dimensions:   158.75*158.75mm

Cell Arrangement:   144(6*24)

Weight:   22.7kg

Module Dimensions:  2015*1001*40mm

Cable Cross Section Size:   4mm²(0.006sq.in)

Front Glass:   3.2mm High Transmission, Tempered Glass

No.of  Bypass Diodes:   3/6

Packing Configeration (1):   27pcs/Pallet, 660pcs/40hq

Frame:   Anodized Aluminium Alloy

Junction Box:   IP68

OPERATING CONDITIONS

Maximum System Voltage:1000V/DC(IEC)

Operating Temp: -40℃-+85℃

Maximum Series Fuse: 20A

Static Loading: 5400Pa

Conductivity at Ground: ≤ 0.1Ω

Safety Class: Ⅱ

Resistance: ≥100MΩ

Connector:MC4 Compatible

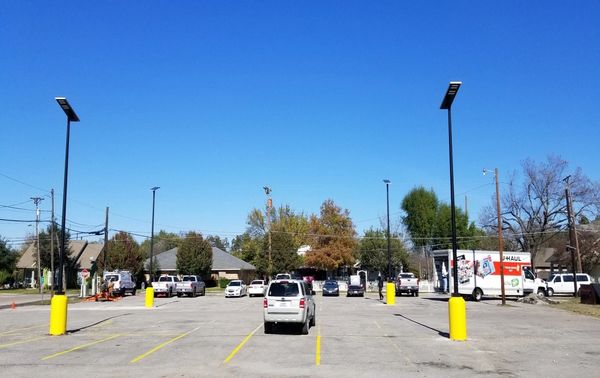

SUPERIOR (SILVER) Series

MODEL NO. KHK-SPR-030C

Solar Panel

Power

18V/60Wp （Monocrystalline PV）

Life-span

25 years

Batteries

Capacity/Type

12.8V/24AH (307.20WH) / LiFePO4 Lithium

Life-span

8+ years (3,000 circles @ 60% DoD)

Controller

Type

MPPT / IP68/IoT Online Monitoring as Optional

Sensor

Microwave Radar (PIR & Timing as optional)

LED Light Source

Rated Power

12V/ 30W (36LEDsx2 modules)

LED Brand

PHILIPS 3030 (LED Lumen: 195lm/W)

Lumens(LM)

3000-3600lm

Life-span

100,000 hours

Viewing Angle

140° (Customized Angles & IES Types Available)

Full Charge Time

By Solar

5 hours (STC: 1000W/㎡, 25℃ )

Discharge Time

Dim Mode

> 75 hours

Bright Mode

> 15 hours

Working Temp.

-30℃~+80℃

Color Temp.

Daylight White 5000K （full color temp. range 2700~6500K available)

Mounting Height/Brackets

6～7 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps

Space Between Lights

25～30m

Materials

aluminium alloy

Certificate

CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001

Warranty

3 OR 5 years

Packing & Weight

Light Body Size:

920*355*60mm

Net Weight

15.0kg (Light: 12kg, bracket: 3kg)

Carton Type

Customary Carton/ OEM Acceptable

Carton size

Light: 960*400*200mm / Brackets: 900*350*190

Qty/ctn

2 lights in 1 CTN/ 6 brackets in 1 CTN

GW. per Carton

Light: 25.0kg/ Brackets: 19.0kgs

PCS per Container

20' GP:

570 Pieces

40' HQ:

1320 Pieces
